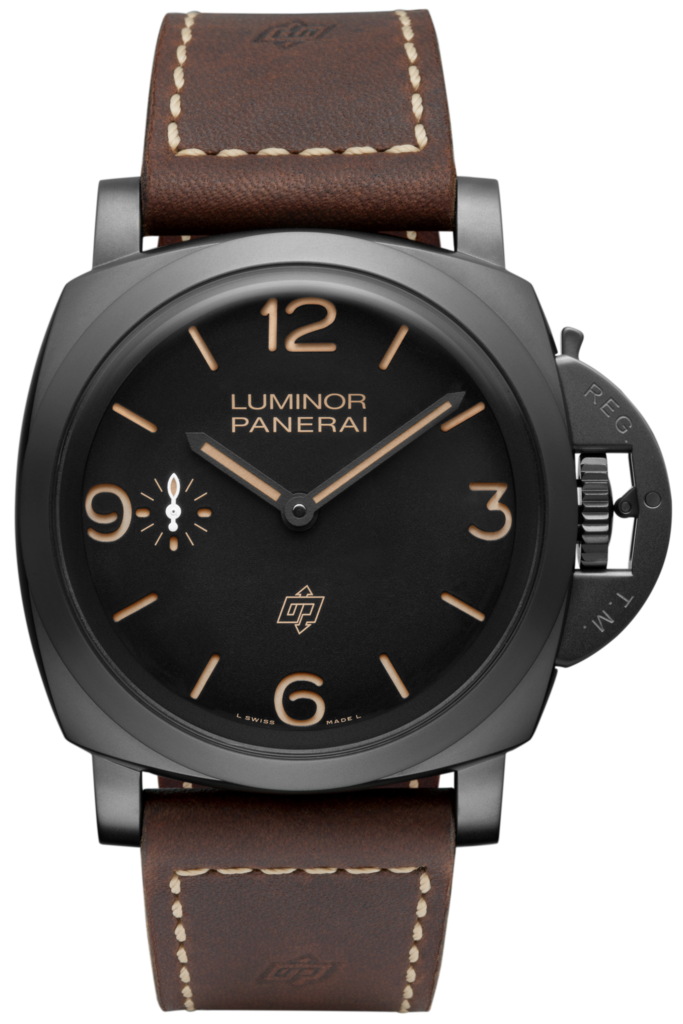

Panerai Luminor 1950 3 Days Titanio DLC PAM00617

Panerai
Serise:Panerai Luminor 1950
Model:PAM00617
Case:
Case Material:Titanium
Case Coating:DLC
Case Glass:Sapphire
Case Back:Closed
Case Shape:Cushion
Case Diameter:47.00 mm
Case Lug Width:26.00 mm
W/R:100.00 m
Dial:
Dial Color:Black
Dial Indexes:Mixed
Dial Hands:Stick
Movement:
The P.3000 calibre, created entirely at the Panerai Manufacture, presents the main characteristics of the Panerai movements in terms of structure and robustness, accuracy and power reserve. The diameter of the calibre is 16? lignes, a substantial size which traces its origins from that of the movements which were fitted to the historic Panerai models. The calibre is immediately recognizable by its construction, which is similar to that of a three-quarter plate movement: a large bridge, next to another smaller one, covers the majority of the mechanical parts, and is fixed to the bottom plate by a series of screws of substantial thickness, thus forming a particularly rigid structure. The movement has 21 jewels and it uses two spring barrels connected in series. Such an arrangement enables long, thin springs to be used, which ensure the delivery of a more even force over a longer period of time, with a power reserve of 3 days. The balance wheel is notably large (13.2 mm) and it is the variable inertia type, with four adjusting screws arranged externally round the ring, so that the rate can be regulated without the need to remove the whole assembly. Held by a bridge with twin supports ¨C a fixing much safer and more stable compared to the cantilevered single bridge ¨C the balance wheel oscillates at a frequency of 3 Hz, equivalent to 21,600 alternations per hour. It is fitted with an Incabloc? anti-shock device and is free-sprung, so there is no regulating lever. With brush-finished bridges and chamfered edges ¨C that is, with the edges smoothed and polished ¨C the P.3000 calibre is also fitted with a device for the rapid adjustment of the time: a star wheel with 12 points and a small spring clutch enable the hour hand to be moved one hour at a time, without interfering with the movement of the minute hand or the operation of the watch.

P.3000/1 features small seconds at 9:00.
Type:Handwound
Brand:Panerai
Caliber:P.3000/1
Base:Panerai P.3000
Display:Analog
Diameter:36.60 mm
Jewels:21
Reserve:72 h
Time:Hours, Minutes, Small Seconds
